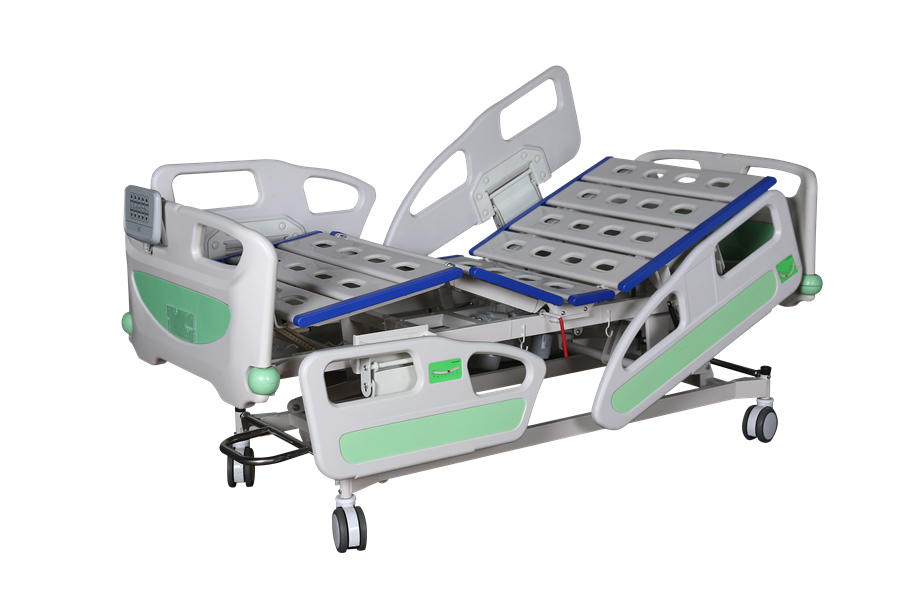

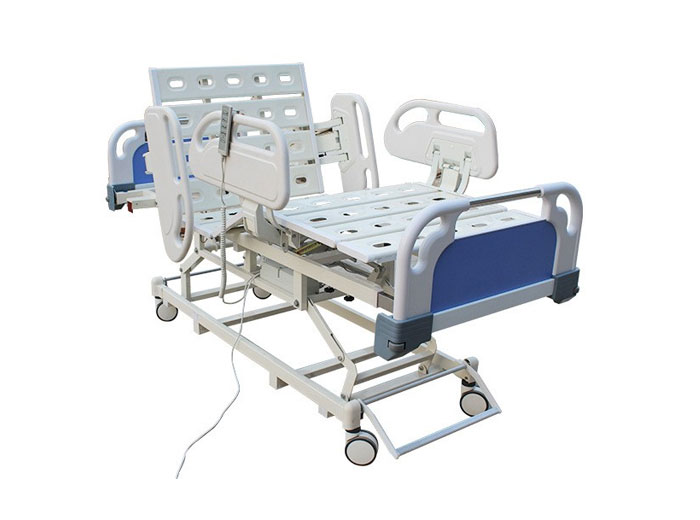

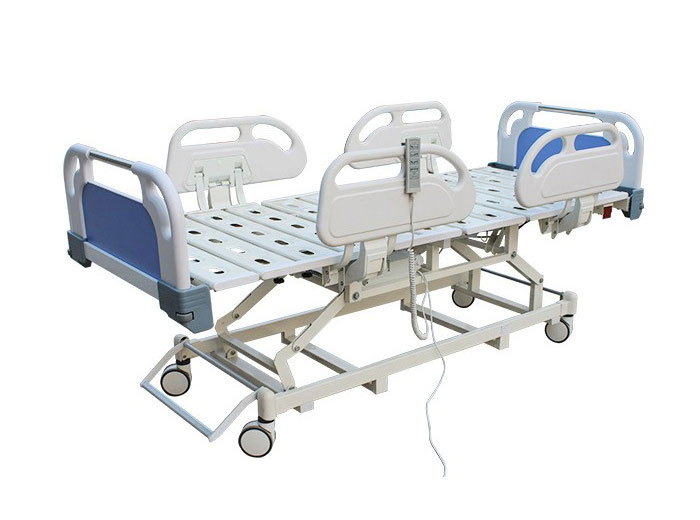

2.1 The inching button type realizes the function actions of bed body lifting, back board lifting, leg board lifting, and front and rear tilting 0-13°
2.2 Lifting height of bed body: 480mm～760mm, can be made as required
2.3 Back tilt angle 0～75±5°, leg tilt angle: 0～40±5°, front and back tilt 0-13°, calf plate angle can be adjusted manually
2.4 Carrying weight: ≥200kg; the back bed surface adopts a double support structure, which is firm and firm. The double supports are formed by cold steel stamping and strengthening.
The bearing capacity of the back plate
2.5 Up and down four-piece PP guardrail is set on the side, which can be raised and lowered. When the guardrail is lowered and contracted, it is flush with the bed surface, which can reduce space and facilitate clinical operation
2.6 There are 4 drip holder holes at both ends of the bed frame, and 4 urine drainage bag hooks are provided on both sides of the bottom of the bed frame. The drip holder can be placed at the bottom of both sides of the bed frame when not in use.
2.7 Plastic mattress rails can be installed at the rear and both sides of the bed surface. The plastic mattress rails are easy to install and disassemble without tools.) The back plate can prevent the mattress from sliding and shifting when it is raised and lowered. It can also be used as a handle for lifting adjustment Angle of calf bed panel
